| Ask Lasest Price | |
| Brand Name : | IMPCO |
| Model Number : | MODEL E |
| Certification : | UL |
| Price : | Depending on quantity |
| Payment Terms : | T/T |
| Supply Ability : | 1200pcs per 8weeks |
| Delivery Time : | 8 weeks |
| SPECIFICATIONS | |
| Fuel Type | LPG Liquid/Vapor and Natural Gas |
| Inlet Pressure | |
| Maximum | 312 psi (21.51 Bar) |
| Minimum | 30 psi (207 kPa) |
| Outlet Pressure (Nominal) | |
| EB | -1.5” w.c. (-0.37 kPa) |
| EO | -5.0” w.c. (-0.12 kPa) |
| PE | +5.0” w.c. (1.2 kPa) |
| HP/kW Rating | 325 hp (242.3 kW) LPG 200 hp (150 kW) where lower water flow-rate is a factor. |
| Operating Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Fuel Filtration Required | 40 micron |
| Heating Chamber Source | Required for liquid LPG |
| Mounting Position | Vertical (outlet down) recommended. Horizontal position can be used when fuel contamination can be controlled with HD-5 specified LPG fuel |
| Diaphragm Material | Hydrin, Silicone, and Fluorosilicone (optional) |
| Applications | Stationary, mobile, industrial, and automotive |
| Certification | UL (AU2317 & AU1502), Inquire for specific ECE approval |

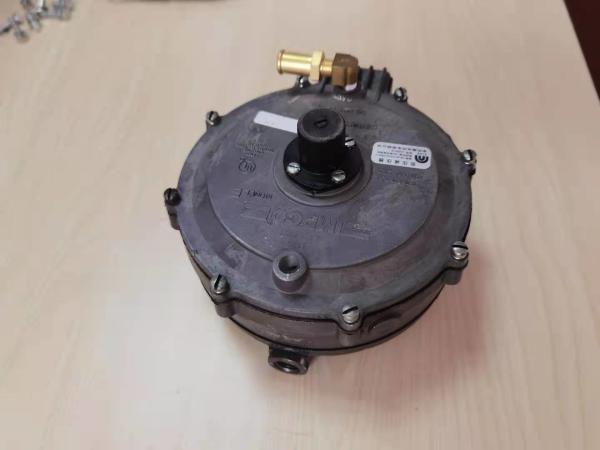

IMPCO Gas Regulator :
A propane vaporizer increases the speed at which propane travels to machines that require it for power. A propane tank may not be large enough or have the technical capability to deliver propane at the appropriate speed or pressure, but a vaporizer corrects the problem. IMPCO manufactures various propane vaporizers. If a propane vaporizer malfunctions, it needs immediate troubleshooting to ensure it functions safely while also providing the other machine the fuel it needs.
Our Service:
Committed to offer most reliable products, best engineering services with timely response and detailed system solution, Guangqing value every customer’s requirement and cherish the diversity, hoping promote the green power concept under mutual development with customers nationwide and worldwide.
|
|
