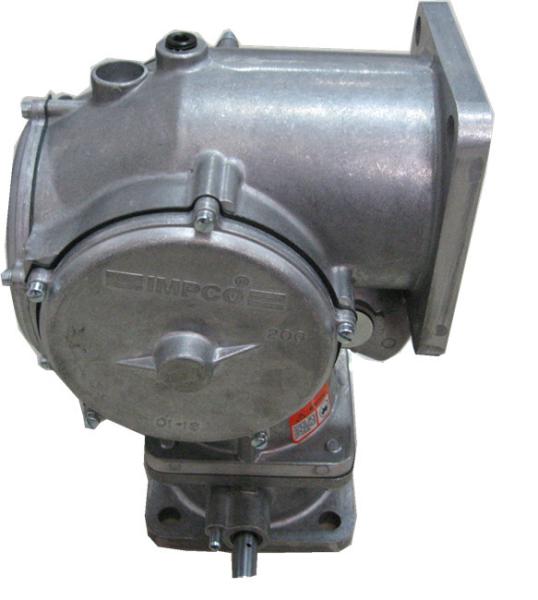

316.9 KW Triple Diaphram IMPCO 200T Natural Gas Mixer

LPG Vapor Or Natural Gas Mixer On Engine Up To 316.9 KW , Triple Diaphram Air Valve

The Model 200T is a triple diaphragm air-valve carburetor/mixer that offers a 90° air inlet to provide low overhead clearance, and is available with several air horn and throttle valve options. This unit is available for LPG Vapor, Natural Gas, and Digester Gas applications as low as 500 BTU with airflow requirements up to 680 CFM (320.9 L/s). All DG model mixers reduce airflow by 30%. The Model 200T is also available for feedback applications with the ’FB’ designation.

The 200T mixer provides a convenient 1/4” balance port at the air inlet. Additional low speed idle mixture control can be obtained to lean air/fuel mixtures through the use of optional shims.

SPECIFICATIONS
Fuel Type	LPG Vapor, Natural Gas, or Digester/Landfill Gas (550 - 2,500 BTU)
Inlet Pressure	-1.5” w.c. (-0.37 kPa)
Operating Temperature Range	-40ºF to +250ºF (-40ºC to 121ºC)
Mounting Position	Vertical
Diaphragm Material	Hydrin (Standard), Silicone (Optional)
HP/kW Rating	425 hp (316.9 kW) @ 680 CFM (320.9 L/s) and 2.0” Hg manifold depression
