LPG Vapor IMPCO Mechanical Lockoff For Engines

IMPCO Model VFF30/VFF30-2/VFF30 , A Combination Fuel Lockoff And Filter , LPG Liquid/Vapor Natural Gas Vapor

DESCRIPTION

The Model VFF30 is a combination fuel lockoff and filter, engineered for use with LPG Liquid/Vapor or Natural Gas Vapor. It is available with Hydrin, Silicone and Fluorosilicone diaphragms. A pressure of 0.5” w.c. (0.12 kPa) is required to open the lockoff. The VFF30 is suitable for engines up to 325 hp (242.4 kW) at a maximum working pressure of 312 psi (21.5 Bar). The extra-large capacity filter element is fully serviceable.

SPECIFICATIONS
Fuel Type	LPG Liquid/Vapor or Low Pressure Natural Gas
Inlet Pressure (Maximum)	312 psi (21.5 Bar)
Flow Rate	26.7 CFM (12.6 L/s)
Operating Temperature Range	40°F to +250°F (-40°C to +121°C)
Vacuum Activation
Minimum Opening	0.5” w.c. (0.12kPa)
Fully Opened	11.5” w.c. (2.86 kPa)
Min. Operating Opening	2.0” w.c. (0.50 kPa)

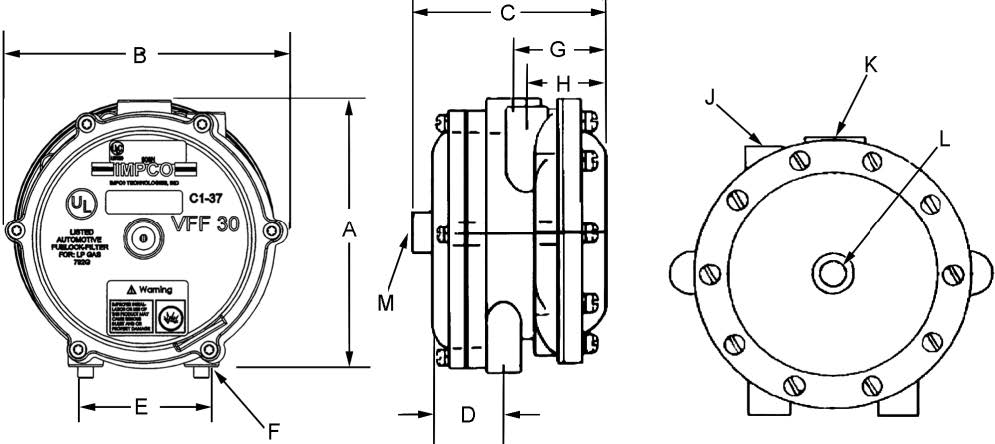

Mounting Position	Vertical (as shown above)
Certification	UL (AU1502), Inquire for specific ECE approval
