IMPCO Secondary UL KN Low Pressure Regulator

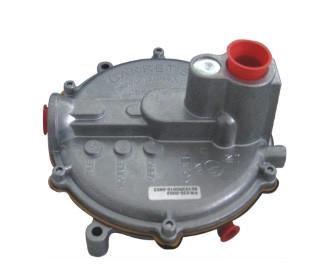

IMPCO Low Pressure Regulator Model KN , Secondary Regulator ,Low Pressure Natural Gas / LPG Vapor , Up To 30 KW

The Model KN is a secondary regulator designed for maximum sensitivity and simple, trouble free operation. It is suitable for use with low pressure, Natural Gas and LPG Vapor fuels. This regulator is typically used in service applications up to 30 kW (40 hp). A new high flow capacity unit is also available with a ½” orifice, suited for service applications up to 37 kW (50hp). The KN regulator is completely rebuildable using an IMPCO repair kit.

SPECIFICATIONS
Fuel Type	LPG Vapor or Natural Gas Vapor
Inlet Pressure	13.84” w.c. (3.44 kPa)
Outlet Pressure (Nominal)	-0.5” w.c. (-0.12 kPa)
Initial Flow Pressure	-0.05 to -0.35 w.c.
HP/kW Rating
LPG (Standard)	40 hp (29.8 kW)
LPG (High Flow)	50 hp (37.3 kW)
Natural Gas (Standard)	25 hp (18.6 kW)
Natural Gas (High Flow)	30 hp (22.4 kW)
Operating Temperature Range	-40°F to +250°F (-40°C to +121°C)
Mounting Position	Vertical and as close to the carburetor as possible.
Diaphragm Material	Silicone
Applications	Stationary
Certification	UL (AU1502), Inquire for specific ECE approval
