Aluminum 221L/s 217.7kw IMPCO Large Engine Mixers

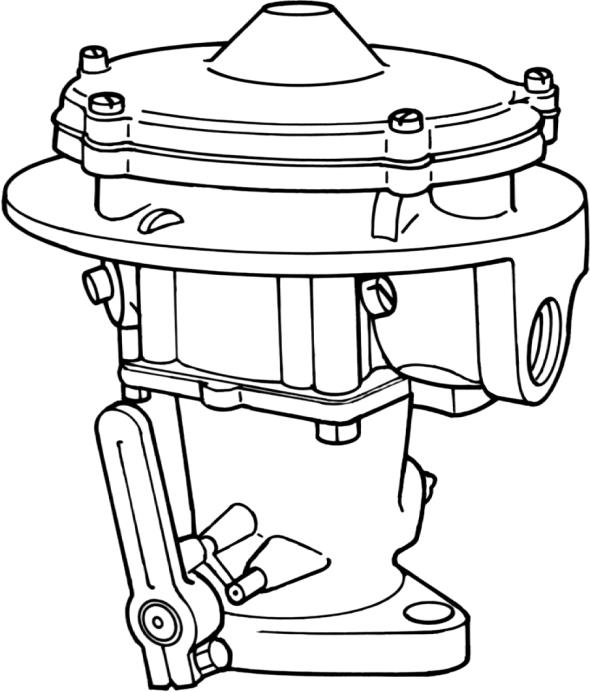

IMPCO Large Engine Mixer Model 225 Is A Single-Diaphragm Air Valve Mixer. Down-Draft Air Inlet. LPG Or Natural Gas.

Model 225

DESCRIPTION

The Model 225 carburetor is a single-diaphragm air valve carburetor/mixer. It offers a down-draft air inlet that can be used for remote air filtration or open-element type air filters. This unit is available for LPG Vapor or Natural Gas applications with airflow requirements up to 380 CFM (179.3 L/s).

The Model 225 is also available for feedback applications with the ‘FB’ designation. Note: All DG model mixers reduce airflow by 30%.

Two separate air valve vacuum supplies are available with this mixer. Additional low speed mixture control can be obtained to lean air/fuel mixtures with optional ring spacers/shims. Check the Accessories section for more information.

SPECIFICATIONS
Fuel Type	LPG Vapor, Natural Gas
Inlet Pressure	-1.5” w.c. (-0.37 kPa)
Operating Temperature Range	-40ºF to +250ºF (-40ºC to 121ºC)
Mounting Position	Vertical
Diaphragm Material	Hydrin (Standard), Silicone (Optional)
HP/kW Rating	205 hp (153.0 kW) @ 329 CFM (155 L/s) and 1.5” Hg manifold depression 237 hp (176.7 kW) @ 380 CFM (179.3 L/s) and 2.0” Hg manifold depression
