    Vertical IMPCO 215 hp Propane Mixer Carburetor

    Ask Lasest Price
    Brand Name : IMPCO
    Model Number : 210
    Certification : UL
    Price : Depending on quantity
    Payment Terms : T/T
    Supply Ability : 1200pcs per 8weeks
    Delivery Time : 8 weeks
    • Product Details
    • Company Profile

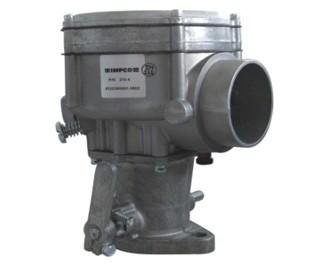

    Vertical IMPCO 215 hp Propane Mixer Carburetor

    IMPCO Large Size Engine Carburetor 210 , LPG Vapor Or Natural Gas Applications , One And Two Cylinder Engines
    The Model 210 can be used with LPG Vapor or Natural Gas for applications with airflow requirements up to 345 CFM (162.8 L/s). The 210 carburetor/mixer is designed primarily for one and two cylinder engines where severe intake manifold pressure pulsations are present. However, its use is not limited to these applications. Improved mixture control and air-gas valve durability can also benefit other applications in tuned intake systems where resonant pressure changes could adversely affect a standard 200/225 model assembly.
    Note that the diaphragm is different from the standard 200/225 model and may have to be ordered as a separate component part (see dashpot assembly on page 83).
    SPECIFICATIONS
    Fuel TypeLPG Vapor, Natural Gas
    Inlet Pressure-1.5” w.c. (-0.37 kPa)
    Operating Temperature Range-40ºF to +250ºF (-40ºC to 121ºC)
    Mounting PositionVertical
    Diaphragm MaterialHydrin (Standard), Silicone (Optional)
    HP/kW Rating215 hp(160.3 kW) @ 345 CFM (162.8 L/s) with 2.0” Hg manifold depression
