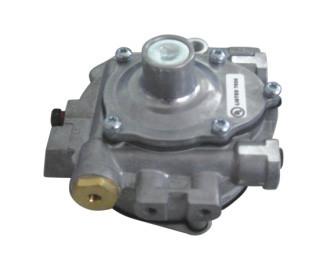

Max 250psi Two Stage T60 IMPCO Regulator For LPG

IMPCO T60 Is A Two Stage Regulator/Vaporizer For LPG Applications Up To 60 Hp (44.7 KW)

DESCRIPTION

The T60 is a two stage regulator/vaporizer for LPG applications up to 60 hp (44.7 kW). Various models feature built-in vacuum lock, idle adjustment, primers, various heating methods, and several mounting options. Newer models (post 2010 production) include an improved primary and secondary lever and seat design, and a standard freeze plug and idle screw. The idle screw has improved sensitivity and stability and is relocated to the cover. An idle screw cap and tamper resistant screws satisfy regulatory tamper resistance requirements. Optional dual mounting tabs are available and all mounting features and ports will remain the same.

SPECIFICATIONS
Fuel Type	LPG Liquid/Vapor or Natural Gas
Inlet Pressure
Maximum	250 psi (17.23 Bar)
Minimum	30 psi (207 kPa)
Outlet Pressure (Nominal)	+5.0” w.c. (1.25 kPa) B9
HP/kW	60 hp (44.7 kW) LPG Liquid
	40 hp (29.8 kW) LPG Vapor
	30 hp (22.4 kW) Natural Gas
Operating Temperature Range	-40°F to +250°F (-40°C to +121°C)
Fuel Filtration Required	40 micron
Heating Chamber Source	Required for LPG Liquid
Mounting Position	Vertical (outlet down) recommended. Horizontal position can be used when fuel contamination can be controlled with HD-5 or HD-10 specified LPG fuel.
Diaphragm	Hydrin
Applications	Stationary, mobile, industrial and automotive
Certification	UL (AU1502), Inquire for specific ECE approval
