LPG Liquid 100hp IMPCO Model J Regulator Fuel System Parts

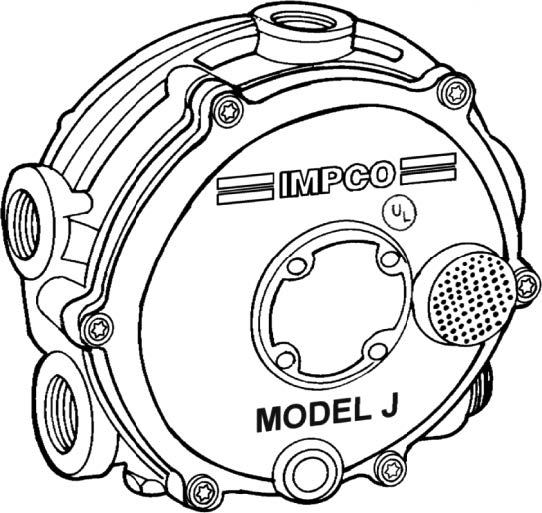

Model J Regulator / Vaporizer , Two Vapor Outlet Pressures Available

Model J

DESCRIPTION

The Model J regulator/vaporizer delivers reliable performance and pressure output consistency. Its reliability, especially with questionable fuel quality, has made it an industry standard for many years.

Two vapor outlet pressures are available. The standard JB blue provides -1.5” w.c. (-0.37 kPa). The optional JO provides -0.5” w.c. (-0.12 kPa). The port size and mounting pad locations are identical to the Cobra regulator and include a primary pressure test port and “left” or “right” fuel outlets.

SPECIFICATIONS
Fuel Type	LPG Liquid/Vapor
Inlet Pressure
Maximum	312 psi (21.51 Bar)
Minimum	30 psi (207 kPa)
Outlet Pressure (Nominal)
JB (blue spring)	-1.5” w.c. (-0.37 kPa
JO (orange spring)	-0.5” w.c. (-0.12 kPa)
HP/kW Rating	100 hp (74.6 kW)
Operating Temperature Range	-40°F to +250°F (-40°C to +121°C)
Fuel Filtration Required	40 micron
Heating Chamber Source	Required for LPG Liquid
Mounting Position	Vertical recommended. Horizontal position can be used when fuel contamination can be controlled with HD-5 or HD-10 specified LPG fuel.
Applications	Mobile, stationary, industrial and automotive
Certification	UL (AU1502), Inquire for specific ECE approval
