Natural Gas 600D 1 2 IMPCO Propane Mixer Carburetor

Ask Lasest Price
Brand Name :	IMPCO
Model Number :	Model 600D-1-2
Certification :	UL
Payment Terms :	T/T
Supply Ability :	1200pcs per 8weeks
Delivery Time :	8 weeks

Add to Cart

Product Details
Company Profile

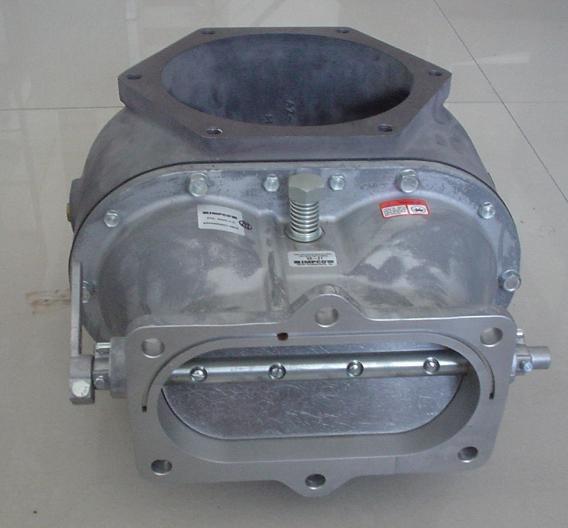

Natural Gas 600D 1 2 IMPCO Propane Mixer Carburetor

IMPCO Carburetor 600D-1-2 , Concentric Flow Type Air Valve , Downdraft , 1600 CFM

The Model 600D-1-2 is a concentric flow type air valve carburetor. This mixer is suitable for LPG Vapor,Natural Gas, Landfill and Digester gases for applications requiring up to 1600 CFM.The air/fuel ratio is controlled by the adjustable power valve, jet, shape of the gas metering valve and the pressure from the gas regulator.

SPECIFICATIONS
Fuel Type
LPG Vapor	90% + Propane
Natural Gas	85% + Methane
Digester Gas	56-72% Methane
Landfill Gas	45-56% Methane
Inlet Pressure	+5.0” w.c. (1.24 kPa) over Air Inlet (Idle Setting)
Operating Temperature Range	-40°F to +250°F (-40°C to +121°C)
Mounting Position	Vertical
HP/kW Rating	1,000 hp (745.7 kW) @ 1600 CFM (755 L/s) and 2.0” Hg manifold depression
