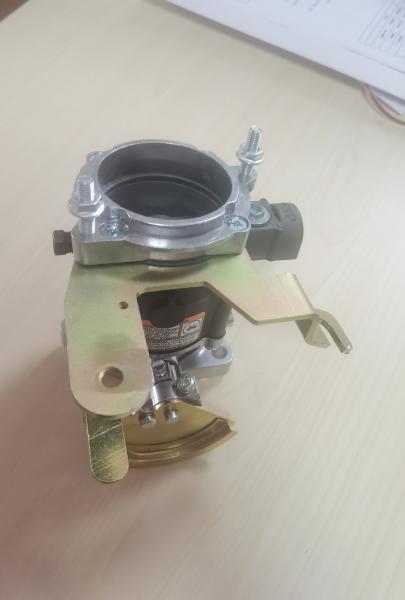

CA55-500 Natural Gas Impco Lpg Mixer Fuel System Parts

Model CA55-500 Mixer Only : Carburetion Equipment

IMPCO CA55-500 Carburetor specifications:

This Model CA55-500 is for use with either LPG Vapor or Natural Gas on engines from 1.5 to 73 hp (1 to 54kW) with a flow rate of 118 CFM (59.0 L/s). This flow-through design may be mounted in either a downdraft, updraft, or side draft configuration. Various air horns and flange sizes are available.

DESCRIPTION

SPECIFICATIONS
Fuel Type	LPG Vapor or Natural Gas
Inlet Pressure	-1.5” w.c. (-0.37 kPa)
Operating Temperature Range	-40ºF to +250ºF (-40ºC to 121ºC)
Mounting Position	Any
Diaphragm Material	N/A
HP/kW Rating	Up to 75 hp (55.9 kW) @ 118 CFM (55.7 L/s) and 2.0” Hg manifold depression

PLEASE REFER TO THE FOLLOWING DESIGN DETAILS FOR SPECIFIC PRODUCT SPECS:

ITEM IS A CARBURETOR MIXER ONLY
BODY ASS'Y: AB1-38
AIR/GAS VALVE: AV1-14925
[A] CENTER TO CENTER BOLT SPACING: N/A
[B] BORE: N/A
[C] AIR HORN DIA.: N/A
[D] OVERALL WIDTH: 104.8mm (4.125")
[E] NPT FUEL INLET: 3/8"
[F] OVERALL HEIGHT: 57.2mm (2.250")
[G] THROTTLE BODY HEIGHT: N/A
[H] THROTTLE SHAFT DIA.: N/A
[J] FLANGE TO TOP OF MIXER: N/A
